Specification for Liquid Line Separators

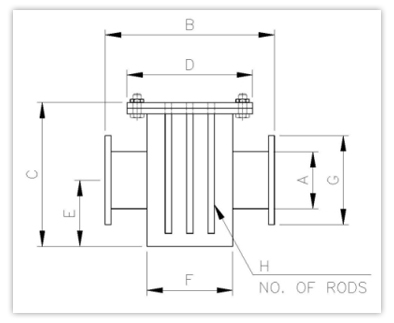

CAGE STYLE | |||||||||||||
ALL DIMENSION ARE IN INCHES | Litres/Min |
||||||||||||
Part No | A | B | C | D | E | F | G | H | Group1 | Group 2 | Group 3 | Group 4 | Weight Kg |
STR 02 | 2 | 10 | 6 | 7.5 | 3.25 | 7.5 | -9 | 5 | 546 | 382 | 191 | 82 | 13.2 |
STR 2.5 | 2.5 | 12 | 7.5 | 9.75 | 4.38 | 9.75 | 0 | 7 | 909 | 638 | 318 | 136 | 22.7 |
STR 03 | 3 | 12 | 9 | 9.75 | 4.38 | 9.75 | 0 | 7 | 909 | 636 | 318 | 136 | 22.7 |
STR 04 | 4 | 12 | 12 | 10.25 | 4.38 | 9.75 | 0 | 7 | 1227 | 859 | 432 | 186 | 27.2 |
STR 06 | 6 | 23 | 18 | 16 | 13.38 | 10.75 | 11 | 9 | 7273 | 5091 | 2545 | 1236 | 104.4 |
STR 08 | 8 | 26 | 24 | 19 | 17.25 | 12.75 | 13.5 | 9 | 7273 | 5091 | 2545 | 1236 | 124.7 |
STR 10 | 10 | 30 | 30 | 23.5 | 21 | 16 | 16 | 15 | 7273 | 5091 | 2545 | 1236 | 261 |
STR 12 | 12 | 34 | 36 | 25 | 21 | 18 | 19 | 15 | 14318 | 10023 | 500 | 2432 | 295 |
STR 14 | 14 | 36 | 42 | 27.5 | 23.38 | 20 | 21 | 15 | 14371 | 10023 | 500 | 2432 | 333.5 |
STR 16 | 16 | 40 | 46 | 32 | 25.63 | 24 | 23.5 | 17 | 23836 | 18545 | 8273 | 4000 | 442.4 |
STR 18 | 18 | 40 | 50 | 32 | 27.5 | 24 | 25 | 17 | 23836 | 16545 | 8273 | 4000 | 476.4 |
Note:
1.Technical data specification subject to change.2.Special Liquid Line Separators can be made on request, Please send us your technical data and application, required for our engineers to provide.
PLATE STYLE | |||||||||
Model no. | A | B | C | D | Group1 | Group 2 | Group 3 | Group 4 | Weight Kg |
STR-15 | 1.5" | 4.25" | 5.50" | 10.0" | 245 | 189 | 94 | 57 | 8 |
STR-20 | 2.0" | 4.25" | 5.50" | 10.0" | 245 | 189 | 94 | 57 | 8 |
STR-25 | 2.5" | 4.75" | 7.75" | 13.5" | 528 | 339 | 226 | 132 | 14 |
STR-30 | 3.0" | 4.75" | 7.75" | 13.5" | 528 | 339 | 226 | 132 | 14 |
Note:
1.Technical data specification subject to change.2.Special Liquid Line Separators can be made on request, Please send us your technical data and application, required for our engineers to provide.
